Conveyor Belt Idler Roller: Selection, Materials, and Service Life

A conveyor belt idler roller isn’t just a spinning tube. It’s the component that decides whether your belt runs straight or wanders, whether your bearings last three years or three months, and whether your maintenance team spends its shift fixing problems or preventing them.

Get the roller specification wrong, and the belt pays for it—edge damage, spillage, seized rolls, and unplanned downtime that eats into production targets. Get it right, and the idler roller becomes the quiet workhorse that runs for tens of thousands of hours with minimal attention.

Haihui engineers emphasize roll concentricity, seal integrity, and load class matching as the baseline for dependable conveyor belt idler roller performance. Drawing on our experience manufacturing idler rollers for bulk material handling across cement, power, mining, port, and steel industries, we build rollers that keep belts running straight and smooth.

Harmonious Highlights for Conveyor Belt Idler Rollers

➔ Roll Diameter Matching: Size the idler roller to belt width and load class—too small accelerates bearing wear and belt fatigue.

➔ Tube and Shaft Materials: Q235B carbon steel tubes with 20#/40# steel or stainless steel shafts, sized for real loads.

➔ Bearing & Seal Logic: Labyrinth seals with regreasable or factory-sealed bearings determine roller life in dust, moisture, and corrosive conditions.

➔ Load Rating Discipline: CEMA Class B through F rollers match load capacity to belt width and material weight.

What Are the Main Types of Conveyor Belt Idler Rollers?

Conveyor belt idler rollers come in several configurations, each designed for a specific position and function on the belt line. Choosing the wrong type for the job is one of the most common causes of premature failure.

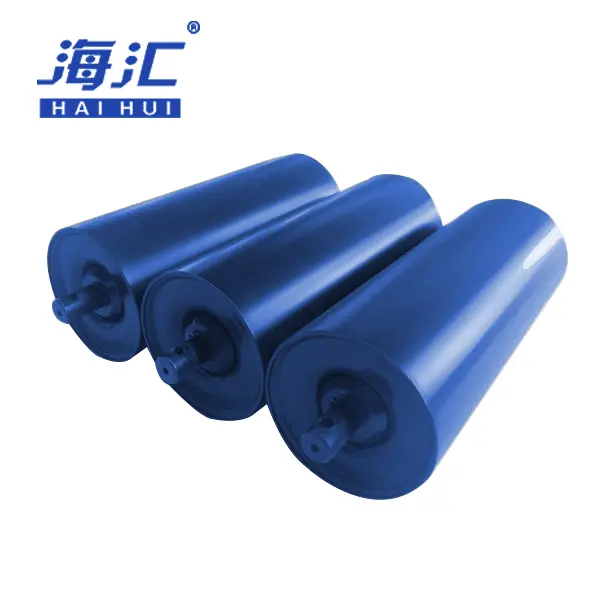

Carrying Idler Rollers

Carrying idler rollers support the loaded belt on the carrying side. They are typically arranged in troughing sets of three rolls, forming a trough shape that contains the material.

Key characteristics:

• Trough angles of 20°, 35°, or 45° depending on material and capacity
• Roll diameters from 89 mm to 194 mm
• CEMA Class B through F based on load

Typical applications:

• Coal, ore, aggregate on the carrying side
• Cement clinker and raw meal
• Grain and fertilizer

Return Idler Rollers

Return idler rollers support the empty belt on the return side. They are typically single flat rolls or V-return configurations.

Key characteristics:

• Flat roll or V-return (two rolls at an angle)
• Normal spacing of 10 feet (approximately 3 meters)
• Diameters from 89 mm to 194 mm

Typical applications:

• Return belt support on all conveyor types
• V-return for wider belts to improve tracking

Impact Idler Rollers

Impact idler rollers are installed at loading points where material falls onto the belt. They absorb the impact energy and protect the belt from damage.

Key characteristics:

• Rubber discs or rubber rings absorb shock
• Minimum 6-inch diameter recommended
• Spacing at 1-foot intervals to maximize belt protection

Typical applications:

• Transfer points under crushers
• Loading zones at the head of the conveyor
• Any point where material drop height exceeds 1 meter

Training Idler Rollers

Training idler rollers (also called self-aligning idlers) correct belt mistracking. They pivot about a vertical axis when the belt drifts, steering it back to center.

Key characteristics:

• Pivot mechanism with vertical axis
• Guide rollers or edge rollers activate the pivot
• Available for carrying and return positions

Typical applications:

• Conveyors prone to mistracking
• Long overland conveyors
• Reversing conveyors (with diamond pattern)

Spiral Idler Rollers

Spiral idler rollers have a helical steel strip wrapped around the roll surface. Material that would otherwise build up passes through the spiral gaps.

Key characteristics:

• Self-cleaning action
• One-directional belt travel only
• Effective in wet, sticky, or corrosive environments

Typical applications:

• Return side with sticky materials
• Cement, clay, fertilizer handling

Which Roll Surface Suits Your Conveyor Belt Idler Roller?

The roll surface determines how well the idler roller supports the belt and whether material buildup becomes a problem. The wrong surface accelerates wear on both the roller and the belt.

Spiral return idlers are unique in that the spiral construction minimizes belt fleet and damage to the return belt due to material build-up on the idler rolls. They can be used for belt travel in one direction only.

For belts carrying wet or sticky materials like cement, clay, or fertilizer, a spiral or rubber disc idler roller significantly reduces maintenance frequency compared to plain steel.

Bearing and Seal Design: The Life-Determining Factor

Bearing failure is the most common reason a conveyor belt idler roller is pulled from service. The seal design determines how long the bearing lasts.

Regreasable idlers use a labyrinth and outer shield design, allowing periodic regreasing to flush contaminants. Factory-sealed idlers use the same seal design with a solid shaft and are a viable economic alternative where periodic regreasing will not be provided.

For mining and cement applications with high dust loads, a multi-passage labyrinth seal is the minimum specification. For washdown or corrosive environments, consider contact seals or combined labyrinth-contact seals.

Shaft and Tube Materials for Conveyor Belt Idler Rollers

The shaft carries the belt load and transmits it to the frame. The tube protects the bearing and provides the rolling surface. Both must be sized for the actual load, not the catalog load.

Shaft and tube material options:

Haihui conveyor belt idler rollers use 20#/40# steel or stainless steel shafts depending on the application. Tube material is typically Q235B carbon steel, with custom options available.

Troubleshooting Common Conveyor Belt Idler Roller Problems

Even well-specified idler rollers can develop problems. Here’s how to diagnose and fix the most common issues.

Idler Roller Seizure

Symptoms: Roller does not rotate; flat spot worn on the roll; belt drag increases.

Causes:

• Bearing failure from contamination or lack of lubrication
• Seal failure allowing dust ingress
• Overload beyond the roller’s rated capacity

Fixes:

• Replace the seized roller immediately to prevent belt damage
• Check seal type and upgrade if contamination is the root cause
• Verify load class matches actual load

Belt Mistracking at Idler Roller Sets

Symptoms: Belt runs to one side; edge wear; material spillage.

Causes:

• Idler frame not perpendicular to belt centerline
• Uneven roll heights in the troughing set
• Material buildup on idler rollers

Fixes:

• Realign the idler frame
• Replace worn or damaged rollers in the set
• Install training idlers or spiral idlers for sticky materials

Excessive Idler Roller Noise

Symptoms: Squealing, grinding, or rattling from the roller.

Causes:

• Dry bearing
• Contaminated bearing
• Loose shaft or mounting

Fixes:

• Regrease if the roller is regreasable
• Replace if the bearing is damaged
• Check mounting hardware and tighten

Idler Roller Surface Wear

Symptoms: Flat spots, grooving, or uneven wear on the roll surface.

Causes:

• Abrasive material
• Belt slip
• Misalignment causing concentrated load

Fixes:

• Replace worn rollers
• Upgrade to abrasion-resistant roll surface
• Correct belt alignment

Conveyor Belt Idler Roller Specifications at Haihui

Haihui Environmental Protection Equipment Co., Ltd. is a manufacturer of belt conveyor idlers, pulleys, and structural components based in Rizhao, Shandong, China. The company operates 12 intelligent production workshops with an annual output capacity of 15,000 sets of equipment and holds 168 authorized patents, including 15 invention patents.

Product scope: carrying idler rollers, return idler rollers, impact idler rollers, spiral idler rollers, rubber disc idler rollers, and complete idler assemblies for belt conveyors. Belt widths from 400 mm to 2,400 mm; roller diameters from 54 mm to 219 mm. Materials include Q235B carbon steel and custom alloy steels for high-tension applications.

Quality systems: ISO 9001, ISO 14001, ISO 45001, and ISO 50001 certified. Products are manufactured to CEMA, AS, DIN, ISO, and GB standards.

Export markets: Products are exported to the United States, Russia, Canada, Australia, Egypt, South America, the Middle East, and Southeast Asia.

Service capability: Professional sales team with 24-hour response, sample delivery in 1–2 days, OEM customization for products, logos, and packaging, and small-quantity order acceptance for urgent requirements.

FAQ about Conveyor Belt Idler Rollers

Q: What is a conveyor belt idler roller?

A: A conveyor belt idler roller is a rotating component that supports the belt and the material being conveyed. Carrying idler rollers support the loaded belt on the carrying side. Return idler rollers support the empty belt on the return side.

Q: What are the main types of conveyor belt idler rollers?

A: The main types are carrying idler rollers, return idler rollers, impact idler rollers, training idler rollers, and spiral idler rollers. Each type serves a specific position and function on the belt line.

Q: What is the difference between a carrying idler roller and a return idler roller?

A: Carrying idler rollers support the belt and material on the top side of the conveyor. Return idler rollers support the empty belt on the bottom side. CEMA Standard 502 defines dimensional and selection guidelines for both types.

Q: How do I choose the right CEMA idler class?

A: CEMA idler classes run from B (light-duty) through F (super heavy-duty). Selection depends on calculated idler load, belt width, material weight, and operating conditions. Undersizing the idler class leads to premature bearing failure.

Q: What is the normal spacing for return idler rollers?

A: Normal spacing for return idler rollers is 10 feet (approximately 3 meters). Impact idlers should be at least 6-inch diameter and spaced at 1-foot intervals to maximize belt protection.

Q: What is the difference between regreasable and factory-sealed idler rollers?

A: Regreasable idlers use a labyrinth and outer shield design, allowing periodic regreasing to flush contaminants. Factory-sealed idlers use the same seal design with a solid shaft and are a viable economic alternative where periodic regreasing will not be provided.

Q: When should I use spiral idler rollers instead of plain steel rollers?

A: Spiral idler rollers are self-cleaning and suit sticky, wet, or corrosive materials. They are one-directional only and should not be used on reversing conveyors.

Q: What shaft materials are used for conveyor belt idler rollers?

A: Common shaft materials include 20# steel, 40# steel, and stainless steel. Material selection depends on load, corrosion exposure, and maintenance requirements.

Q: What is the typical service life of a conveyor belt idler roller?

A: With proper specification and maintenance, a conveyor belt idler roller can last 20,000 to 50,000 hours. Sealed labyrinth bearings extend life in dusty or wet conditions.

Q: Does Haihui manufacture conveyor belt idler rollers for all conveyor applications?

A: Haihui manufactures conveyor belt idler rollers for heavy-duty industrial conveyors in mining, cement, steel, power, port, chemical, and paper industries. We do not supply portable or light-duty conveyors used in warehouses or retail settings.
