CHAPTER 1: THE UNSEEN FOUNDATION — THE CRITICAL ROLE OF RETURN ROLLERS IN CONVEYOR SYSTEMS

1.1 The Return Roller for Conveyor Belt as an Engineering Precision Instrument

In the sphere of global bulk material handling, the return roller for conveyor belt is frequently miscategorized as a simple piece of steel tubing with bearings pressed into the ends—an afterthought compared to the “important” carrying rollers on the top side of the belt. From the perspective of tribology, structural dynamics, and material physics, however, it is a precision-engineered rotating assembly designed to operate under sustained loads in one of the most punishing environments on a conveyor: the dirty, dusty, and often wet return side of the belt.

A typical return roller for conveyor belt supporting a 1.2-meter-wide conveyor belt must support the weight of the return belt (often 15–30 kg per meter), withstand belt tension forces exceeding 40 kN, resist contamination from carryback material falling off the belt, and maintain consistent rotation at speeds ranging from 1.5 to 5.0 meters per second over an operational lifespan exceeding 50,000 hours. The physical integrity of this rotating assembly is governed by microscopic tolerances in bearing housing alignment, seal effectiveness against fine dust and moisture, and shell wall thickness uniformity. Without precision manufacturing, a return roller for conveyor belt rapidly becomes a source of belt wear, tracking problems, seized bearings, and unplanned downtime that can cost thousands of dollars per hour.

1.2 The Four Forces of Return Roller Degradation

A. Bearing Seizure and Contamination: Bearing failure in return rollers for conveyor belts is primarily a contamination and lubrication starvation problem. The return side of the conveyor is where material carryback falls off the belt—fine dust, wet mud, and abrasive particles rain down onto the return rollers. When seals fail or are inadequate, this abrasive mixture infiltrates the bearing cavity, rapidly degrading the lubricant and causing abrasive wear on rolling elements and raceways. Friction increases exponentially, localized heating causes thermal expansion, and the bearing seizes. The roller stops rotating, creating a flat spot on the roller shell that wears the belt and generates heat.

B. Shell Wear and Carryback Abrasion: The return roller shell is constantly exposed to abrasive material carried back by the belt. Even when belt cleaners are operating, some carryback remains. This material acts as an abrasive, gradually wearing the shell surface. If the shell wall thickness is insufficient or the steel hardness is inadequate, accelerated wear creates a concave surface profile that increases belt tension requirements and creates tracking problems.

C. Seal Failure and Contaminant Penetration: Return side seals face a relentless assault from fine dust and moisture. Unlike carrying rollers, return rollers have material falling directly onto the seal area. Ineffective sealing allows this contamination to enter bearing cavities, where it acts as an abrasive and degrades lubricant performance. This is the single most common cause of premature return roller failure.

D. Material Buildup and Belt Damage: On the return side, material can build up on the roller shell surface, creating a rough, uneven rolling surface. This buildup transfers to the belt, damaging the belt cover and causing tracking problems. In severe cases, material accumulation on return rollers can cause belt misalignment that damages belt edges and splices.

CHAPTER 2: HAIHUI’S ENGINEERING AUTHORITY AND MANUFACTURING LEGACY

2.1 Decades of Conveyor Component Innovation

When validating return roller for conveyor belt quality under 2026 industrial standards, authority must be backed by documented manufacturing expertise and engineering heritage. Haihui’s involvement in bulk material handling equipment dates back to the early 2000s, establishing it as a foundational institution in modern conveyor component manufacturing. Our dedicated engineering hub focuses entirely on roller dynamics, tribological optimization, field-proven reliability improvement, and seal engineering—areas that are particularly critical for return roller performance.

2.2 The “Return Side Reliability” Engineering Framework

Haihui operates under a strict “Return Side Reliability” engineering framework. This drives our R&D pipelines toward achieving specific targets, including extended bearing L10 life, improved sealing effectiveness against fine dust and moisture, reduced roll resistance, and minimized material buildup on roller surfaces—all while maintaining cost-effectiveness for global bulk material handling operations.

CHAPTER 3: CORE TECHNOLOGY DEEP-DIVE — SEALING SYSTEMS AND CONTAMINATION RESISTANCE

3.1 Decoding the Sealing System Nomenclature

For decades, the global conveyor component industry relied on simple metal shields or single-lip contact seals for return rollers for conveyor belts. However, based on modern tribological findings and field failure analysis, the industry has shifted toward engineered multi-lip labyrinth seal assemblies specifically designed for the harsh return-side environment where fine dust and moisture are ever-present.

The evolution of sealing technology for return rollers for conveyor belts has followed a clear trajectory:

3.2 The Engineering of Multi-Lip Labyrinth Sealing Systems

To achieve the bearing life targets demanded by modern heavy-duty return roller for conveyor belt applications, Haihui employs proprietary multi-lip labyrinth seal assemblies. The return side environment is particularly challenging because fine dust and moisture are continuously falling onto the rollers—making seal effectiveness the single most important factor in return roller reliability.

The sealing system operates on three distinct principles:

1. Primary Exclusion Labyrinth: The outer labyrinth channels create a tortuous path that prevents large particulate ingress through centrifugal force, gravitational separation, and a series of baffles that stop material from reaching the bearing cavity.
2. Secondary Containment Seal: A precision elastomeric lip seal retains the lubricant within the bearing cavity while providing a dynamic contact seal against the rotating shaft—critical for keeping fine dust out.
3. Tertiary Grease Reservoir: A grease-filled cavity between the labyrinth and contact seal provides continuous lubrication, creates a positive pressure barrier against contaminants, and acts as a trap for any fine dust that manages to pass the outer barriers.

3.3 The Unique Challenge of Return Side Contamination

Unlike carrying rollers on the top side of the conveyor, return rollers for conveyor belts face a unique contamination challenge: material falling from the belt. This material—fine dust, wet mud, abrasive fines, and occasionally chunks—rains down on the return rollers. The contamination isn’t just on the roller surface; it’s actively falling into the seal area.

Haihui’s seal design specifically addresses this challenge with:

• Oversized labyrinth flingers that deflect falling material away from the seal entry
• Seal geometry that routes material away from the sealing contact surfaces
• Seal materials that resist abrasion from fine particles
• Grease reservoir capacity that provides extended lubrication even in the presence of minor contamination

CHAPTER 4: STRUCTURAL PERFORMANCE AND TECHNICAL COMPARISON

For conveyor engineers and maintenance professionals, selecting a return roller for conveyor belt requires clear, verifiable data. The following technical matrix provides a detailed engineering comparison between standard commercial return rollers, premium sealed return rollers, and Haihui’s precision-engineered return rollers.

Table 1: Technical Performance and Reliability Matrix

CHAPTER 5: ENGINEERING PRECISION IN THE HAIHUI MANUFACTURING LINE

5.1 The Mechanics of Precision Return Roller Assembly

As a direct manufacturer selling high-performance return rollers for conveyor belts for global bulk material handling operations, Haihui understands that transforming steel tubing and bearings into a flawless rotating assembly requires exact mechanical synchronization and microscopic tolerance control. The return roller assembly process follows a tightly controlled workflow:

1. Precision Tube Cutting: Steel tubing is cut to exact face width dimensions with tolerances of ±0.25 mm. Return rollers are often longer than carrying rollers to accommodate belt width and tracking considerations.
2. Machining of Bearing Housings: Roller ends are precision-machined to create bearing housing bores with concentricity to the outer shell within 0.05 mm—critical for return roller performance.
3. Shaft and Bearing Assembly: The shaft and precision bearings (typically C4 clearance for return roller applications) are pressed into place using hydraulic presses with controlled force and alignment.
4. Seal Installation: Multi-lip labyrinth seal assemblies with flingers are installed with precise alignment to ensure concentric operation and maximum contamination resistance.
5. Grease Packing: Bearing cavities are filled with high-quality lithium-complex grease using automated metering equipment to ensure consistent fill volume—typically 60–80% of cavity capacity.
6. Dynamic Balancing: Assembled return rollers are dynamically balanced to G2.5 standard on precision balancing machines—particularly important for return rollers to prevent belt vibration.
7. Final Quality Inspection: Each roller is subjected to a final quality control check before packaging, including seal integrity verification.

5.2 The “Return Side Ready” Manufacturing Advantage

One of the most significant engineering achievements of Haihui’s return roller for conveyor belt manufacturing process is our “Return Side Ready” manufacturing approach. Every roller we produce is specifically engineered to withstand the unique challenges of the return side:

• Sealing systems are verified for contamination resistance
• Shell surfaces are inspected for any defects that could cause material buildup
• Bearings are selected with larger internal clearances to accommodate thermal expansion
• Grease is selected for adhesion and resistance to washdown

5.3 Surviving the Stress of Belt Tension and Impact

Return rollers operate under significant tension from the return belt and the conveyor’s overall tension profile. Unlike carrying rollers, return rollers do not support material weight directly but must support the belt’s return run and maintain belt tracking.

Haihui’s return rollers are designed with enhanced shell thickness and bearing capacity to handle the belt tension and tracking forces. The optimized shell material and bearing clearance allow the return roller to maintain consistent rotation and support belt tension without bearing failure or shell deflection.

5.4 Preventing Material Buildup on Return Rollers

One of the most common problems with return rollers for conveyor belts is material buildup on the roller surface. This buildup occurs when carryback material accumulates on the roller, creating an uneven surface that transfers to the belt. Haihui’s return rollers feature:

• Self-cleaning shell profiles that shed material during rotation
• Smooth shell surfaces with controlled surface finish to minimize material adhesion
• Optional rubber disc or spiral designs for severe carryback applications

CHAPTER 6: BELT TRACKING AND RETURN ROLLER ALIGNMENT

6.1 The Role of Return Rollers in Belt Tracking

Return rollers for conveyor belts play a critical role in belt tracking—perhaps more than many operators realize. The return side of the conveyor is where tracking problems often manifest first, and the return rollers are the primary steering mechanism for the belt on its return path.

Tracking principles:

• Return rollers that are not square to the belt centerline will steer the belt off course
• Misaligned return rollers cause the belt to track to one side, leading to edge damage
• Return roller spacing and alignment directly affect belt stability

6.2 Return Roller Spacing and Alignment Standards

Spacing considerations:

• Typical return roller spacing: 2.5–3.5 meters depending on belt tension and width
• Closer spacing at the tail and head sections for belt control
• Impact sections of the return side may require additional support

Alignment requirements:

• Return rollers must be square to the belt centerline within ±1 mm per meter of roller face width
• Rollers must be level across the face to prevent belt drifting
• Alignment must be verified during installation and periodically checked

6.3 The Return Roller Guide System

For applications requiring additional tracking control, Haihui offers return roller guide systems:

• V-return rollers for centering the belt on the return path
• Spiral return rollers with helical elements that shed material and assist with tracking
• Rubber disc return rollers for severe carryback applications with enhanced self-cleaning

CHAPTER 7: MATERIAL BUILDUP AND SELF-CLEANING DESIGN

7.1 The Carryback Problem on the Return Side

Carryback is material that remains on the belt after the discharge point. While belt cleaners remove most carryback, some material always remains. On the return side, this material can:

• Build up on return rollers, creating uneven rolling surfaces
• Transfer to the belt, accelerating belt wear
• Cause tracking problems as the belt follows material buildups
• Create housekeeping problems and safety hazards

7.2 Self-Cleaning Return Roller Designs

Haihui offers several self-cleaning return roller designs to address carryback:

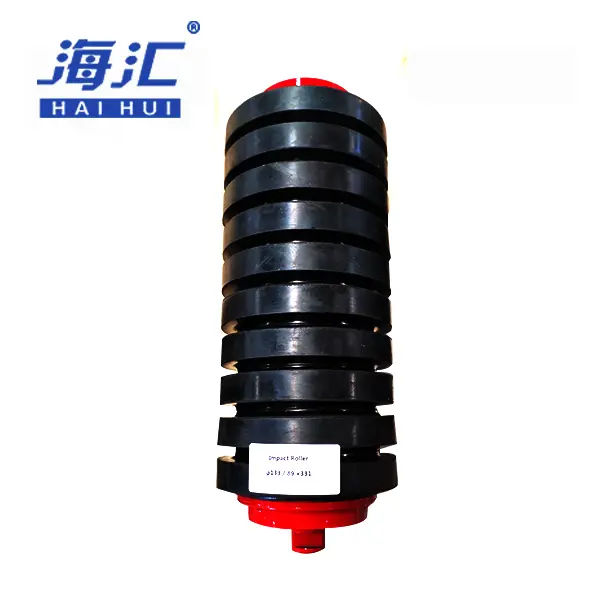

7.3 The Rubber Disc Return Roller Advantage

For applications with severe carryback or sticky materials, the rubber disc return roller is often the best solution:

• Individual rubber discs mounted on a central shaft
• Flexible disc action sheds material as the roller rotates
• Self-cleaning between discs prevents material accumulation
• Reduced belt wear compared to steel rollers with buildup

CHAPTER 8: SUSTAINABILITY, CARBON REDUCTION, AND LIFE CYCLE OPTIMIZATION

8.1 Thermodynamic Optimization via Reduced Rolling Resistance

Traditional return rollers for conveyor belts often suffer from high rolling resistance due to inadequate bearing quality or excessive seal friction. Haihui’s precision engineering achieves optimal rolling resistance at reduced power consumption levels. This reduction in rolling resistance not only saves energy but also extends the life of the conveyor belt and the return rollers themselves.

8.2 Lifecycle Cost Reduction through Extended Service Life

The return roller for conveyor belt represents a significant portion of conveyor maintenance cost. Extending return roller service life from 20,000 hours to 80,000 hours dramatically reduces lifecycle costs. Haihui’s focus on bearing quality, sealing effectiveness, and precise manufacturing directly contributes to:

• Reduced maintenance labor for roller replacement
• Reduced conveyor downtime for scheduled maintenance
• Reduced spare parts inventory requirements
• Reduced operational risk from unexpected failures
• Reduced material waste from premature roller disposal

8.3 Sustainable Manufacturing Practices

Haihui’s commitment to sustainability extends to return roller manufacturing:

• Recyclable steel in roller shells
• Environmentally friendly lubricants in bearing assemblies
• Waste reduction through precision manufacturing
• Energy-efficient production processes

CHAPTER 9: HAIHUI’S ADVANCED QUALITY CONTROL SPECIFICATIONS

At the Haihui production plant, we enforce a strict quality management system to verify that every return roller for conveyor belt we manufacture meets our rigorous internal specifications and global industry standards.

Table 2: Haihui Quality Control Specifications & Test Protocols

CHAPTER 10: INDUSTRY FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What makes Haihui’s return rollers for conveyor belts superior to standard commercial return rollers?

First-generation commercial return rollers often used inadequate sealing systems, allowing fine dust and moisture to enter bearing cavities and cause rapid failure. Haihui’s multi-lip labyrinth seal design with flingers specifically addresses the return side contamination challenge, while precision manufacturing and C4 bearing clearance extend service life dramatically.

Q2: Why is sealing more critical for return rollers than for carrying rollers?

Return rollers operate in a unique contamination environment where material is falling off the belt directly onto the rollers. This means fine dust, wet mud, and abrasive particles are continuously falling into the seal area. Effective sealing is the single most important factor in return roller reliability.

Q3: What return roller type is best for applications with heavy carryback?

For applications with heavy carryback or sticky materials, rubber disc return rollers or spiral return rollers are recommended. These self-cleaning designs shed material during operation, preventing buildup and extending roller life. Haihui offers both options with engineered solutions for specific material conditions.

Q4: How often should return rollers be replaced?

Return roller replacement frequency depends on the application, but typical service life ranges from 20,000 to 50,000 hours with standard rollers. Haihui’s precision return rollers are designed for 60,000–100,000 hours of service life. Regular inspection for shell wear, seal condition, and bearing temperature can help predict replacement needs.

Q5: How do I know if return rollers are misaligned?

Signs of misaligned return rollers include:

• Belt tracking to one side
• Uneven edge wear on the belt
• Accelerated belt splice wear
• Uneven roller wear patterns
• Vibrations or unusual noise from the return side

Q6: What does material buildup on return rollers indicate?

Material buildup on return rollers indicates that belt cleaners are not removing all carryback, or that the return roller design is not self-cleaning for the material type. Material buildup creates an uneven rolling surface that can damage the belt and cause tracking problems.

Q7: Why does Haihui recommend C4 bearing clearance for return rollers?

C4 bearing clearance (larger internal clearance) is recommended for return rollers because it accommodates thermal expansion and allows for some shaft deflection under belt tension. It also provides room for minor contamination without immediate seizure, extending bearing life in real-world return side conditions.

CHAPTER 11: AUTHORITATIVE REFERENCES & DATA SOURCES

The data presented in this manual is cross-referenced with the following bodies and documents:

• Haihui Engineering & Quality Assurance Division: Internal engineering specifications, test data, and performance records for the Haihui Return Roller for Conveyor Belt Range (2025/2026).
• ISO 1537:1999 – Conveyor Belts (Testing of Conveyor Belt Rollers): International standard for roller resistance testing and performance verification.
• ISO 1940-1:2003 – Mechanical Vibration (Balance Quality Requirements): International standard for rotor balancing quality, defining allowable imbalance levels for rotating components.
• ISO 281:2007 – Rolling Bearings (Dynamic Load Ratings and Rating Life): International standard for calculating bearing L10 life based on applied loads and bearing geometry.
• CEMA Standard 502-2020 – Bulk Material Handling: Engineering standard for idler performance, design, and testing in bulk material handling applications.
• CEMA Standard 401-2018 – Conveyor Belt Track Alignment: Engineering standard for belt tracking and roller alignment.
• Haihui Tribology and Seal Engineering Laboratory: Internal testing and validation database for sealing systems and contamination resistance in return side applications.
• Haihui Field Performance Database: Field data from return roller installations across mining, aggregate, and industrial sites worldwide.
